BETAFLEX PRO & BETAFLEX PRO2 FLEXO PLATE & IMAGE ANALYZER - OPTIONS & ACCESSORIES
Today's BetaFlex Pro's Flexo Plate & Image Analyzers, have various options to streamline your Flexo Image and Print Analysis for simplified integration and data collection in your production workflow.
BetaFlex Pro Version 6 Software Upgrade (Upgrade your current BetaFlex Pro(1) to the current software for greater functionality
The BetaFlex Pro (Pro1 & the NEW Pro2) Flexo Plate & Image Analyzers are Beta's 3rd generation Flexo image analyzer in a history that spans more than 25+ years starting with the introduction of the first, Betaflex 330, for image based, dot area, dot percentage analysis.

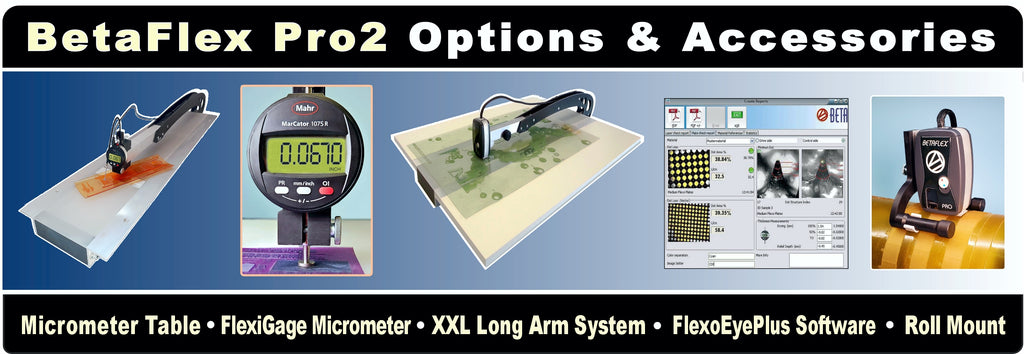

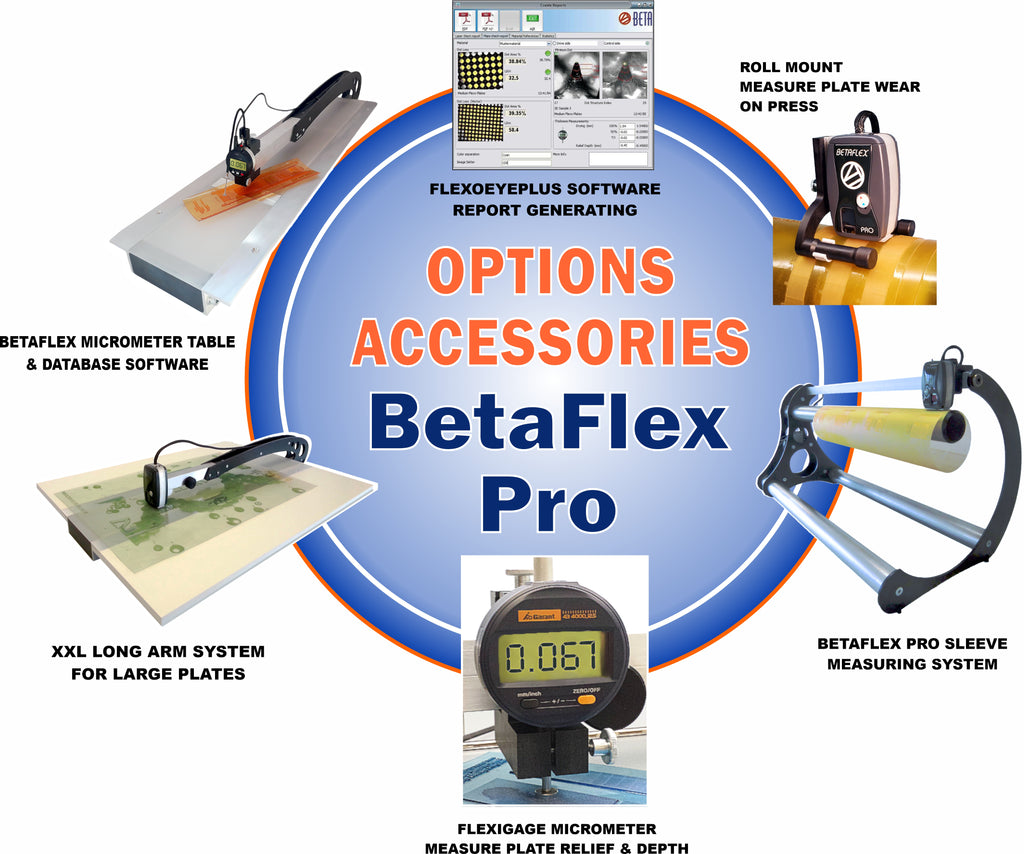

OPTIONS & ACCESSORIES

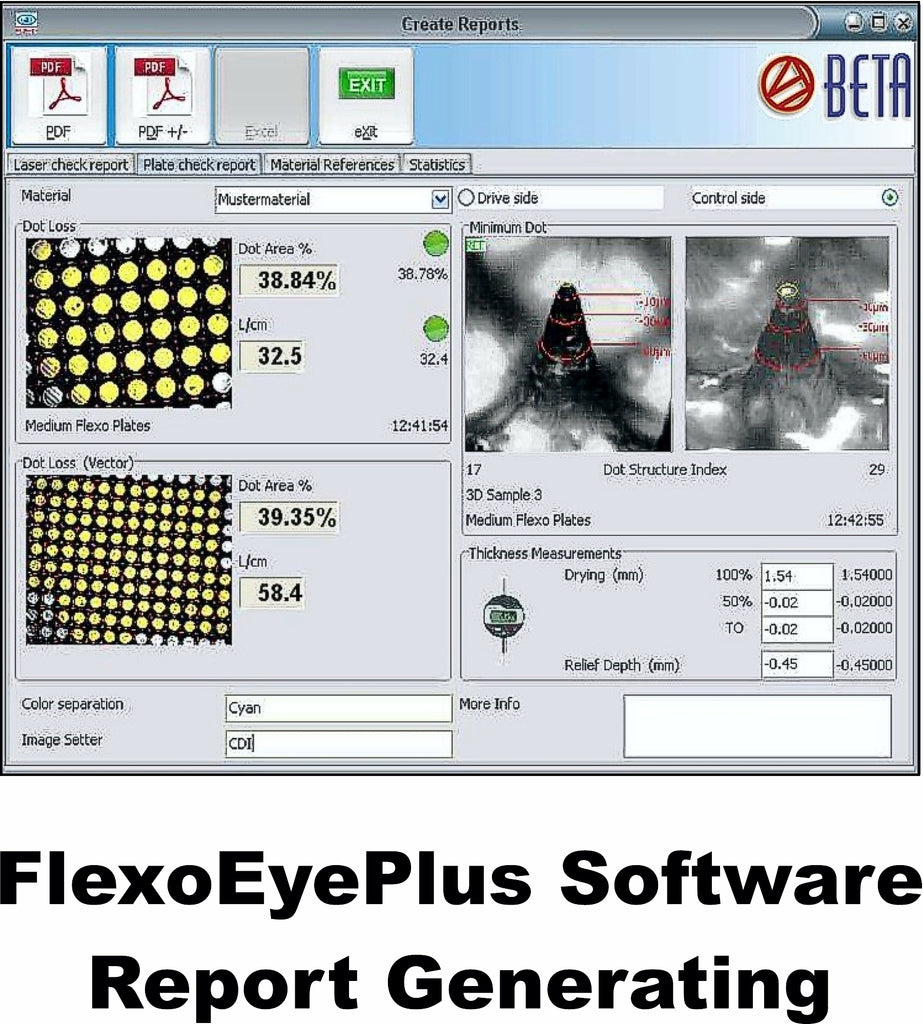

FlexoEyePlus Software - Streamlined Automatic Data Collector & Report Generator
FlexoEyePlus Software Streamlined Automatic Data Collector & Report Generator for Betaflex Pro. Important for ISO certification and for your customers guides the operator to collect just the plate data needed in a high volume production environment
Workflow Automation / QR Code Relational Database software utilizes a micro QR Code and full relational database to track the photopolymer sheet through imaging, processing, and final QC check. Is included with your purchase of FlexoEyePlus Software

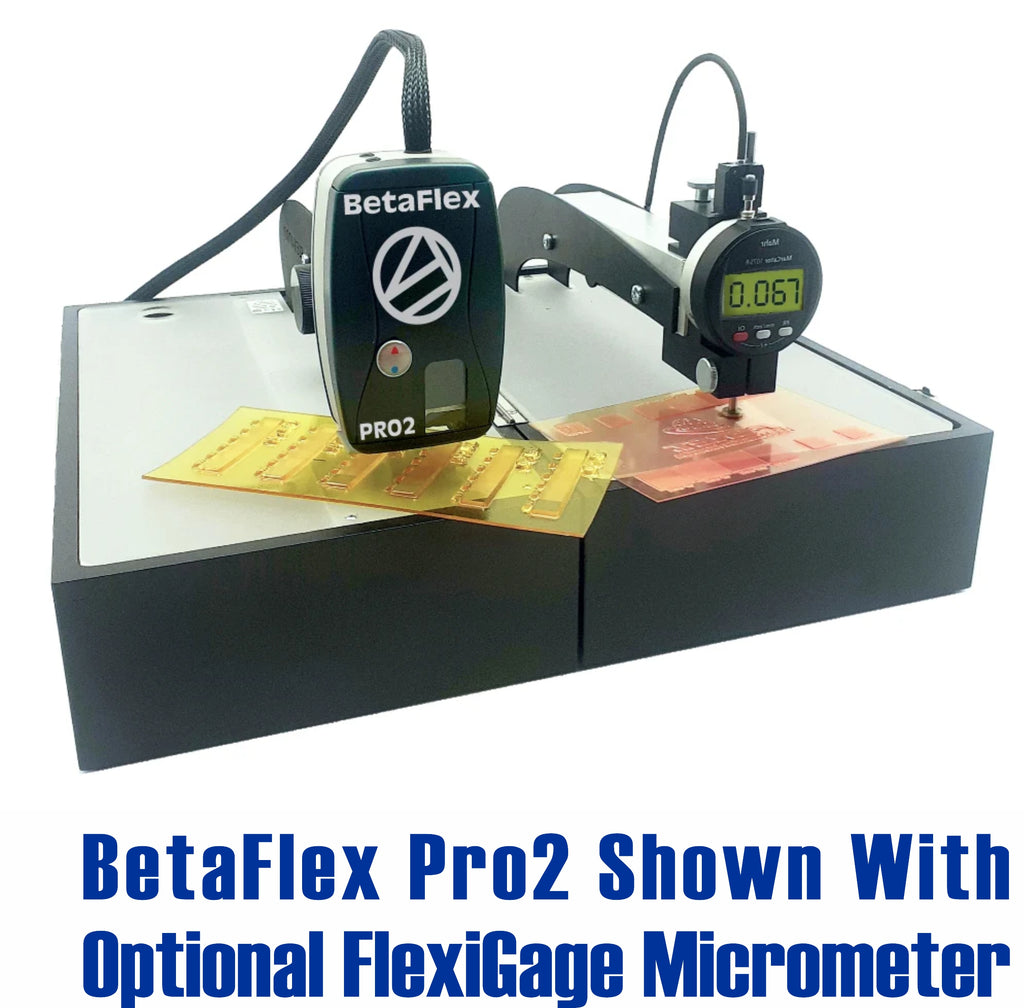

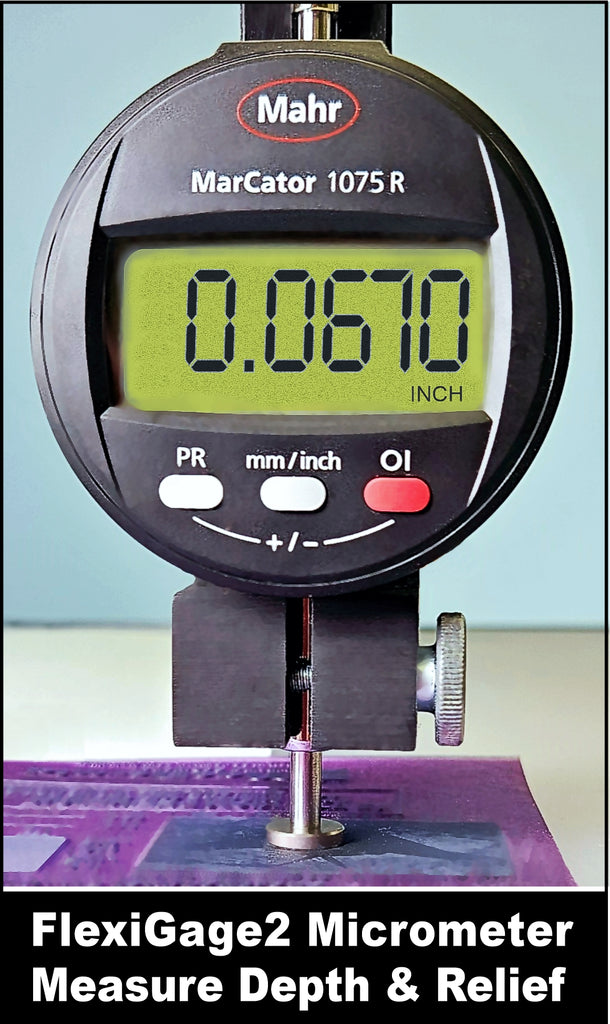

FlexiGage Plate Micrometer - Measures and Document Gauge and Relief
Betaflex Pro XXL Long Arm System or XXL Adaptor
Betaflex Pro XXL Long Arm System or XXL Adaptor (for use with your existing BetaFlex Pro System) mounts the Betaflex Pro Sensor/Meaureing Head or FlexiGage Micrometer 30 inches (76.2 cm) from the edge of the plate for plates of 60 inches (152.4 cm) or larger. Required for transmission plate and mask analysis, the XXL greatly simplifies 3D, print, and thickness/relief analysis of large samples.

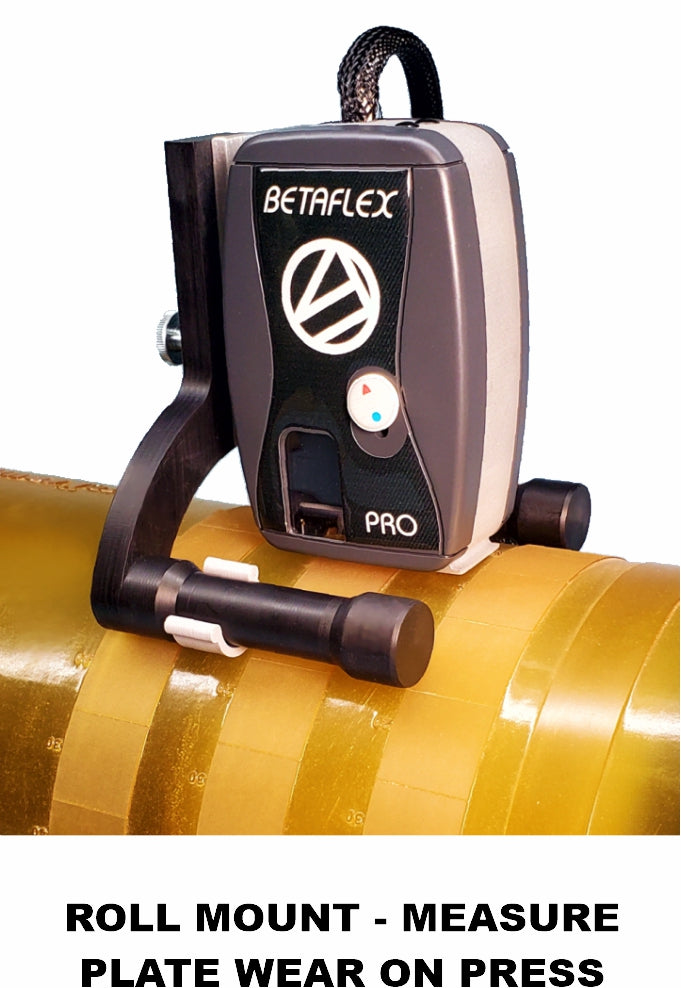

Roll Mount Adaptor
Beta's latest Betaflex System, The BetaFlex Pro2 and BetaFlex Pro (original) available through 12/31/23, operate at the highest resolution to provide the most accurate and consistent measurements for your flexo control process and alysis.
HD Flexo, stochastic screening, high resolution dot area (%), print and film measurement, and all the most sophisticated prepress techniques can be measured and controlled with ease and accuracy in one device that comes complete with all necessary hardware, software, and technical support at no additional cost to user. Also included are all firmware / software updates.
Revolutionary 3D imaging and DOT STRUCTURE Mode add topographical visualization to the conventional dot area halftone measurements. Dot height, diameter, slope and more are visualized and automatically measured at 22,000 PPI. Surface enhancement techniques are easily seen and quantified.
The new high resolution system is portable and easy to use. Operating in TRANSMISSION mode at 14,000 PPI, it quickly and accurately measures all types of transparent flexo plates, digital ablation masks, and halftone films. The new Mask Stain Density function eliminates the need to carry an old fashioned film densitometer to verify laser energy, focus, and beam adjustments.
In PRINT mode, "Color Separation Analysis" imaging of color prints on film and paper provides measurements of Dot Area, Screen Ruling, Edge Factor and more. Excellent for work where there is no room for printed targets like cosmetic and pharmaceutical work. Data and images are easily captured and printed with the integral report generator and statistical analyzer. Offset plates can also be measured.
The new automatic 4 point calibration system eliminates the need to make multiple manual measurements. The Calibration Target and software system maintains a database of the instrument status to satisfy the most stringent ISO registration requirements. All of this is combined with the high precision, ease of use, and Beta product support that has made Betaflex the standard for Flexo Quality Control.
Measure flexo plates, films, and digital masks in conventional 2D mode (.5% at 250 lpi and better)
Dot Structure Analysis in 3D mode reveals dot height, slope, and more
Print mode measures true mechanical dot area on offset plates and prints
Automatic 4 point calibration system with ISO-compliant target
Mask Stain density function for laser ablation setup
Image Overlay and Comparison function to visialize and measure dot changes
Contact your local dealer or Beta Industries for pricing, delivery, and training information. The Betaflex PRO and Betaflex Xpress flexo analyzers are also sold under the Flex3 PRO and Flexcube PRO and Flex3 and Flexcube brand in Europe an Asia. This is one of several new Beta products that replace the Betaflex 334, Betaflex 335 PQF, and Vipflex systems.
Contact us for the BetaFlex Pro demonstration software
Includes a FREE BetaColor Viewer 3, a $515 value. The BetaColor Viewer 3 is the industry standard for critical CMYK color evaluation and is recognized by all segments of the industry with more than 20,000 units sold. View colors enhanced with LED's in high contrast. Yellow and other colors appear virtually black.
About Beta's 10-Day Free Trial for this product, Click Here.
Betaflex Pro Testimonials
The Betaflex Pro helps my team produce better work through live images and measurement data.
Its easy to use/learn; after a few uses operators have it down. As a manager this device has helped us 'cut through the bias' during plate & print troubleshooting and kept the focus on the problem/solution. You cannot put a price on that; after a few print/plate troubleshooting sessions it paid for itself.
I have only contacted the Betaflex support team once or twice and they had an answer for me in less than 24hrs.
I would recommend the Beta Pro to anyone producing flexo or letterpress plates as well as film negatives. It also works well as a print analyzer.
When it comes to plates seeing is believing and measurement is king; BetaFlex Pro does both. We are very satisfied with the product.
As a QA tool it does help us “produce better work” by allowing our team to peer into our platemaking process to ensure that the final product is within the established ranges for each attribute that we measure.
The customized settings for plate specific tolerances have been quite helpful. The foot pedal for the controls also means more of a hands free operation that some operators find helpful.
As plate technologies have evolved and process controls have become tighter, it has become very important to have a dependable measurement tool that allows you to measure and understand what is imaged on the mask and what is formed on the finished plate.
We have established a good relationship with Beta. They have been willing to understand what we were trying to accomplish and have done a good job supporting our efforts via email, phone calls, and screen sharing support.
If someone was looking for a tool to help them better understand their platemaking process and is willing to invest the time to setup the proper procedures, then we would certainly recommend the BetaFlex Pro.
Tyler S. Mills
Special Projects Manager | Cyber Graphics
We have been using the BetaFlex Pro for approximately 3 years.
We find it very helpful to assess the quality of our printed product and to refer to it to analyze and determine if adjustments are necessary at press side, or in pre-press.
We also use it to review HD dots on our plates. There have been numerous occasions where the Betaflex PRO has saved us money at press side.
I enjoy using the BetaFlex Pro and have found it to be a very valuable tool.
I have discovered a new solution for reading white ink mottle on PRINTED FOIL!
This stunned the printer in 15 minutes as they have been searching for a way to do this for a long time. Ironically while I was there they were conducting white ink trials on foil and using only using visual pass/fail methods.
I did this on my computer with my BetaFlex Pro in front of them. I could not have done any of this without the BetaFlex Pro.
David A Recchia | Application Development Sr.
Printing Process Specialist
