BETA PRECISION DIGITAL ELECTRONIC RULERS


BETA PRECISION DIGITAL ELECTRONIC RULERS FOR ANY MEDIUM OR SURFACE where precise, repeatable measurement is critical.

-  Graphics for print dimensions and register

- Flexographic printing platemaking for image geometry and feature size

 - Web printing for print length distortion

 - Die cutting for alignment and re-knifing

 - Printed circuit board imaging, trace width, hole diameter

 - Metal etch and decoration verification

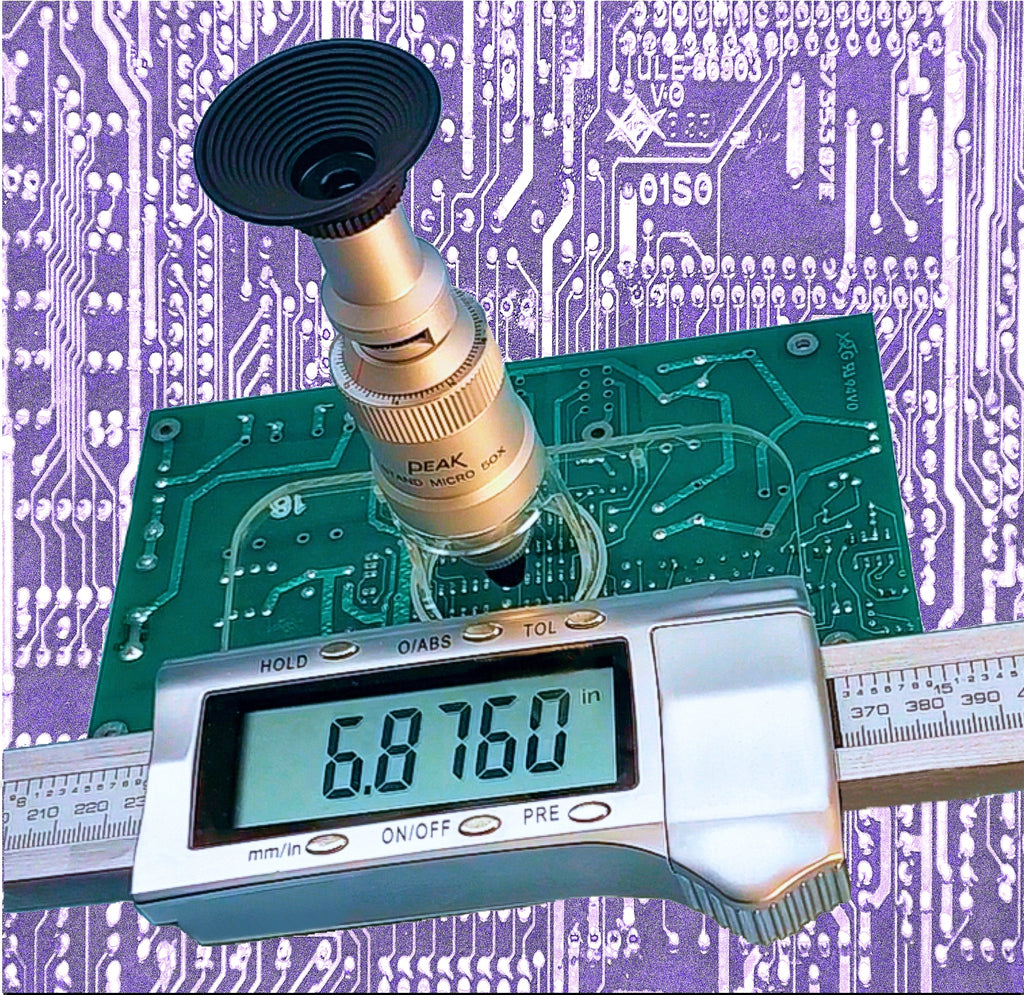

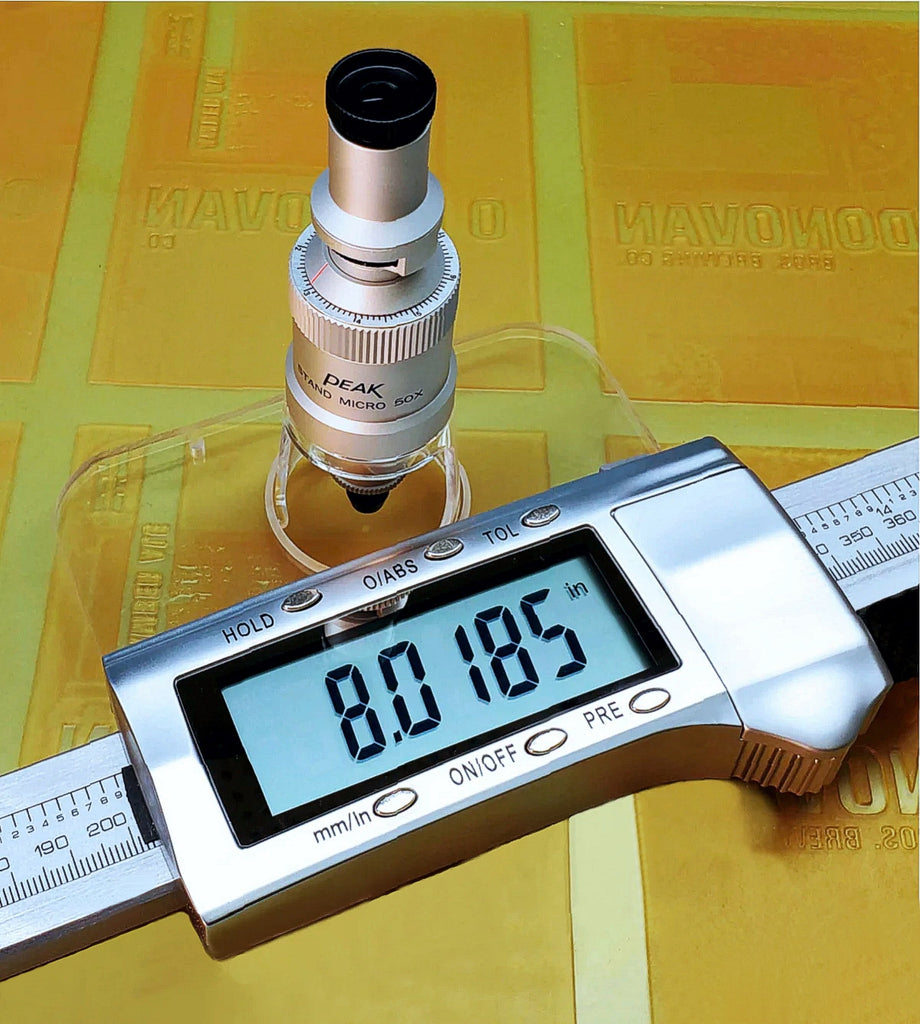

A Peak 50x (2008-50) microscope attached to a digital display traverses the area to be measured on a rugged steel beam. The operator selects inch or metric measurements with either a resolution of 0.0005 inches or 0.01mm.



  • Non-contact measurements

  • Measures films, plates, dies, prints, circuit boards & More

  • Magnification: 50x (standard) optional: 25x, 75x, 100x available




zz

zzz

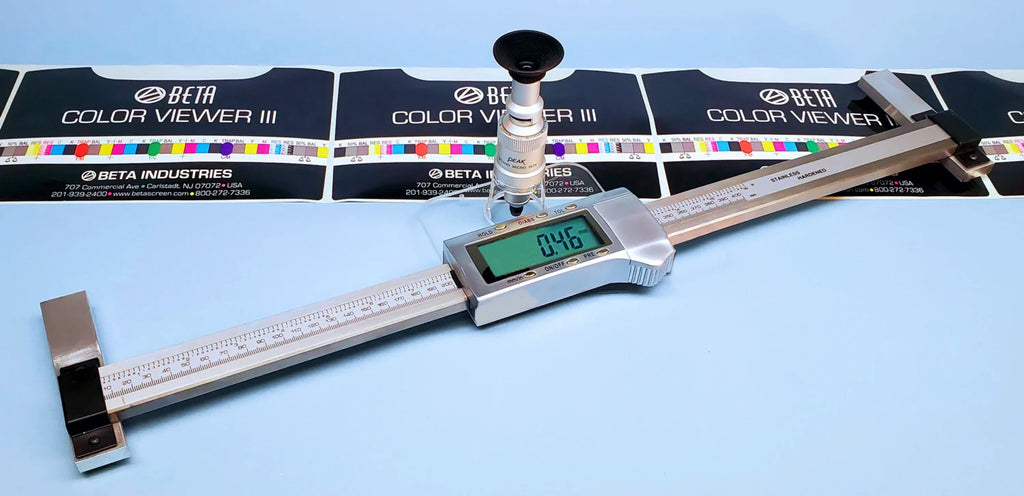

For distances over 0.060 inches / 1.6 mm the operator places the microscope cross hairs over the start of the sample and zeros the digital display. The slide assembly is then moved to the opposite end of the sample and the fine-motion thumb roller is then used to place the cross hairs over the end of the sample.

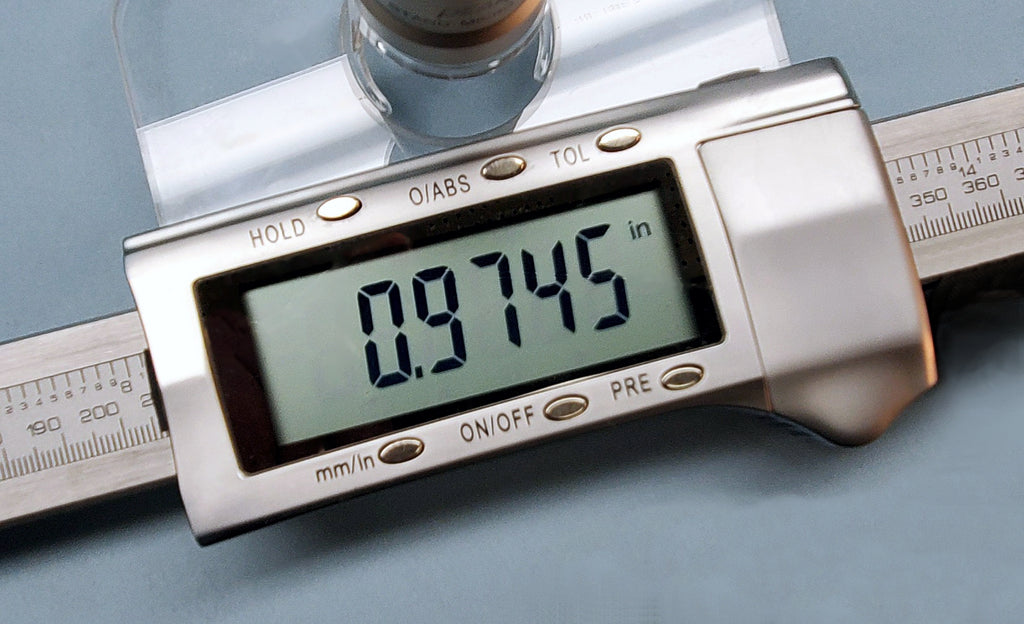

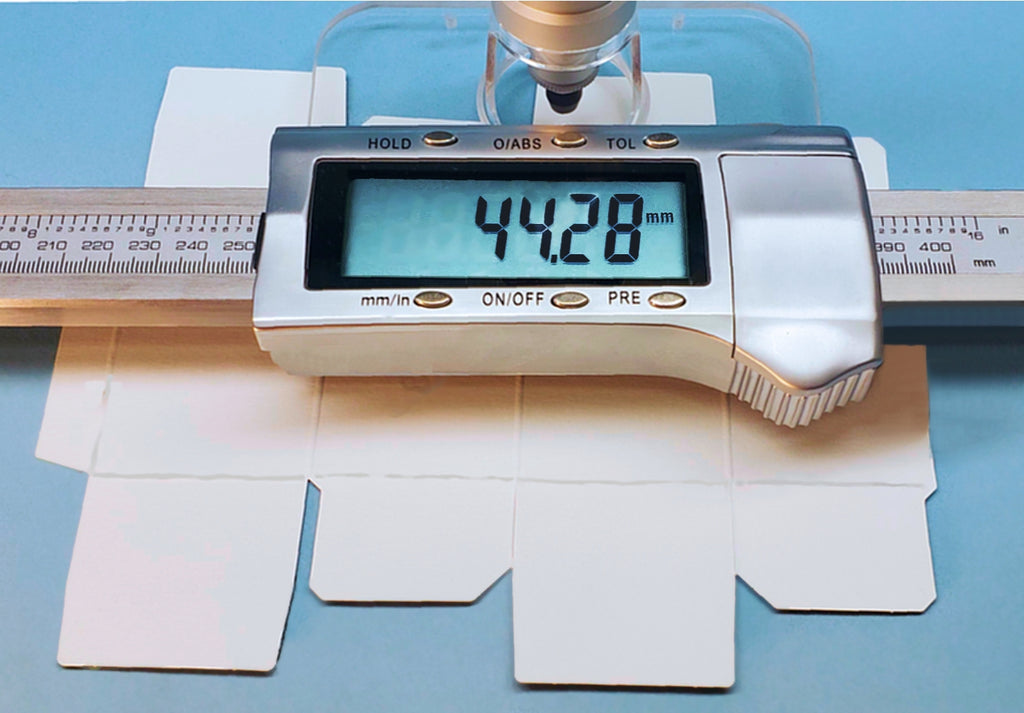

  • Large-format, high contrast LCD display shows the distance moved across the sample.

  • The display and measuring system are powered by the self-contained battery, eliminating cables and chargers.

  • Incremental measurements can be made by setting the zero anywhere along the sample.

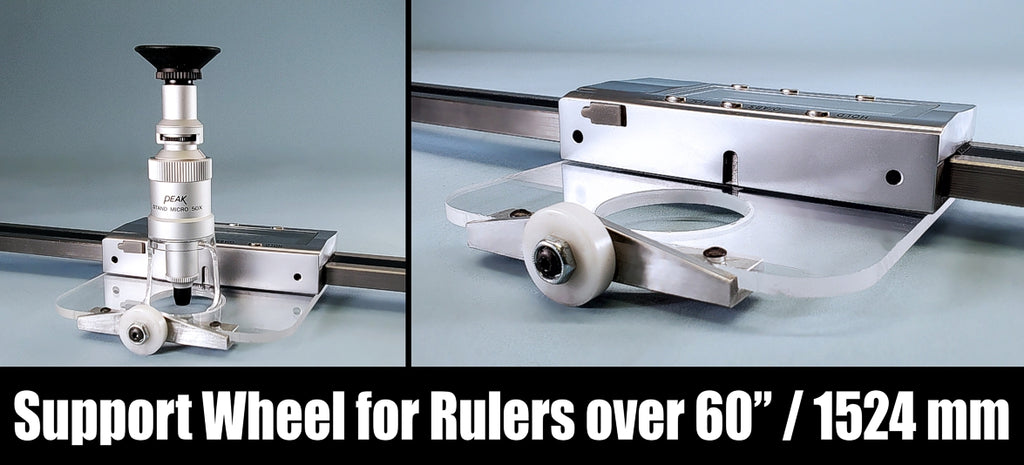

  • Rubber feet rest solidly on the work surface and support the microscope micrometer assembly and slide above the sample

  • The Ruler’s stainless steel construction makes it appropriate for laboratory or production environments.

  • When very large samples need to be measured, the non-skid mounting feet can be placed directly on the film, plate, or other substrates without damage.






      DOCUMENTS & INSTRUCTIONS

      DOWNLOAD BROCHURE

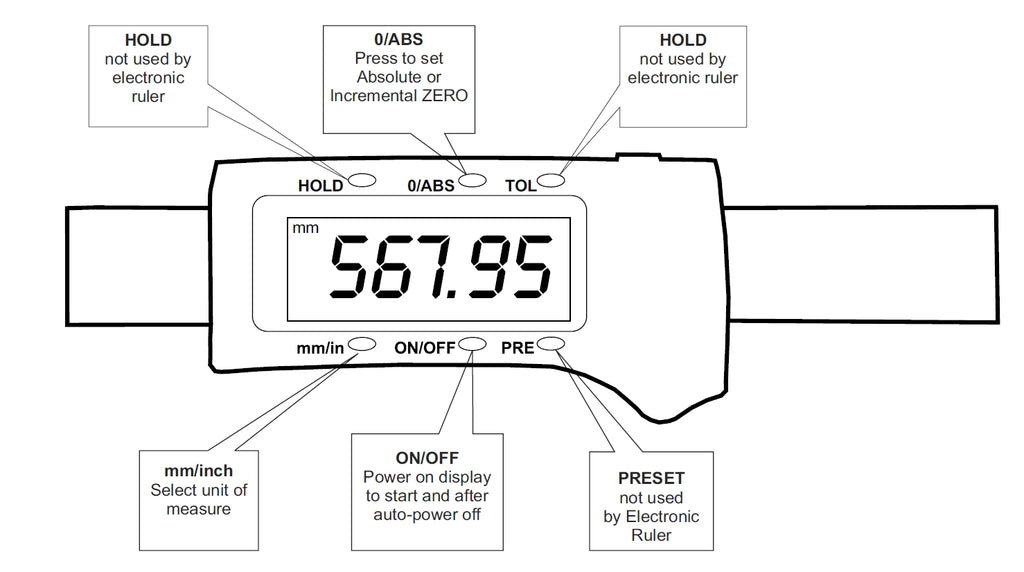

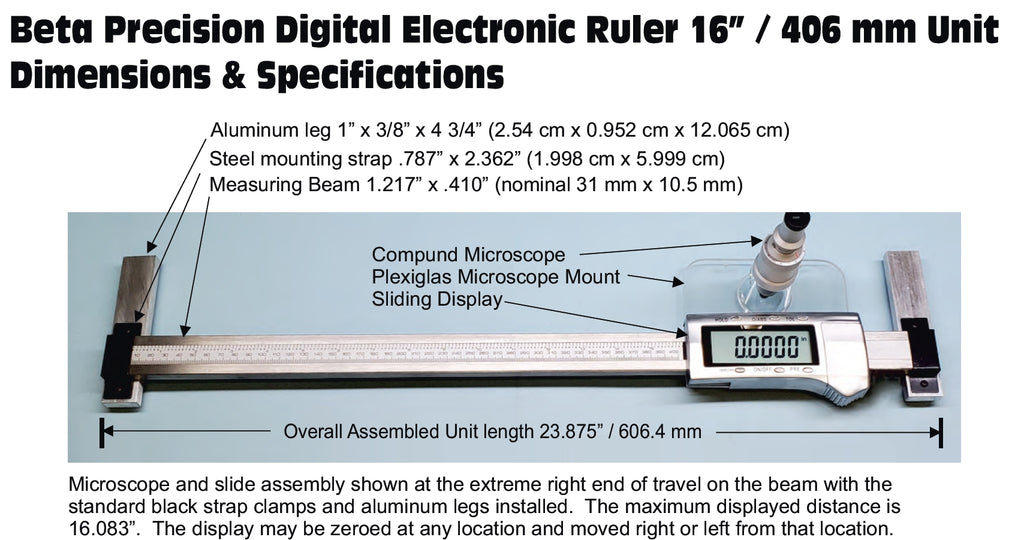

      DISPLAY DIAGRAM

      SPECIFICATIONS & DIMENSIONS

      MICROSCOPE MOUNTING & BASIC INSTRUCTIONS

      QUESTIONS AND ANSWERS

      INSTRUCTION MANUAL








      Typical industries and applications include;

       - Graphics for print dimensions and register

       - Platemaking for image geometry and feature size

       - Web printing for print length distortion

       - Die cutting for alignment and re-knifing

       - Printed circuit board imaging, trace width, hole diameter

       - Metal etch and decoration verification
















      The accuracy of the ruler is dependent upon the range of the device as shown below:
       Range (Inch/MM)
      Tolerance (Inch)
      (MM)
      16 inch / 406 mm
      +/-0.002
      +/-0.05
      24 inch / 610 mm
      +/-0.003
      +/-0.08
      30 inch / 762 mm
      +/-0.004
      +/-0.10
      40 inch / 1016 mm
      +/-0.005
      +/-0.12
      60 inch / 1524 mm
      +/-0.006
      +/-0.14
      80 inch / 2032 mm
      +/-0.008
      +/-0.20

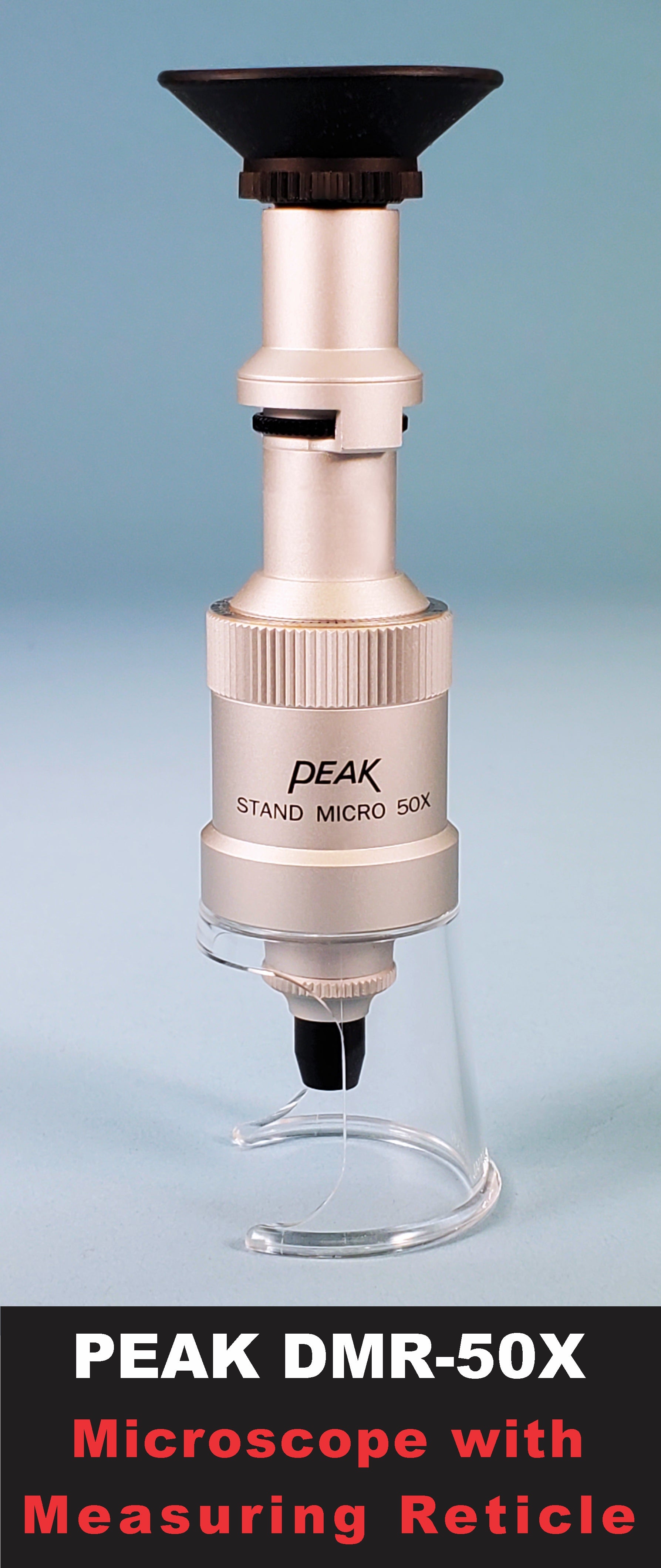

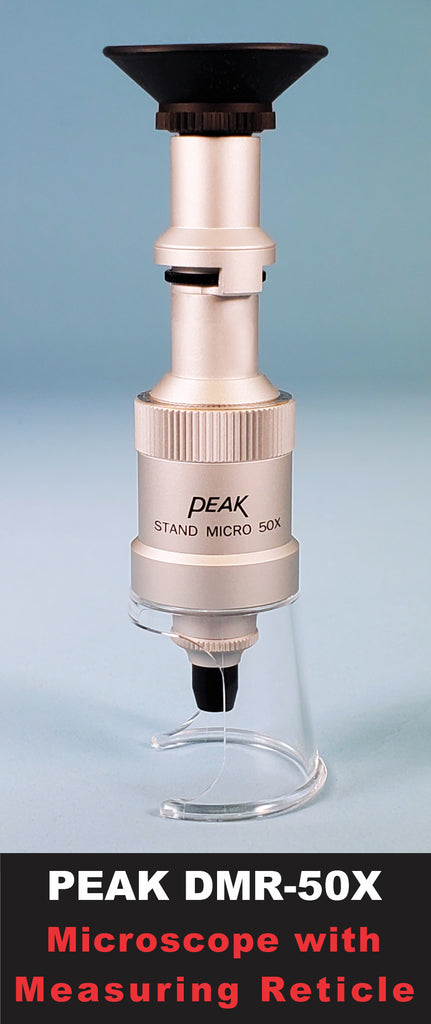

      PEAK DMR-50X MICROSCOPE (PEAK 2008-50) WITH MEASURING RETICLE




      Please note that all Beta Precision Digital Electronic Rulers are custom made specifically for your order. If possible, we strongly encourage you to take advantage of our 10-Day Free Trial program prior to purchase. A 25% restocking fee will be applied for any Electronic Ruler purchased and returned to us for a refund or credit.

      About Beta's 10-Day Free Trial for this product, Click Here.

      Typical lead time is 3-5 business days.

      Please note that all Beta Precision Digital Electronic Rulers are custom made specifically for your order.  If possible, we strongly encourage you to take advantage of our 10-Day Free Trial Program prior to purchase.  A 25% restocking fee will be applied for any Electronic Ruler purchased and returned to us for a refund or credit.
