BetaFlex Pro XXL Long Arm Adapter or Long Arm System

by Beta Industries
Price $ 0.00

Contact us to purchase this product.


Download Brochure of XXL Long Arm System / Adapter & Installation instructions



Differences Between XXL (1&2) Long System & Adaptor at a Glance



z


The BetaFlex PRO XXL (1&2) Long Arm extends the measuring area of the BetaFlex Pro(1) and the BetaFlex Pro2 to measure LARGE plates.



Purchase as either a complete BetaFlex Pro XXL System (complete with measuring head) or upgrade your existing standard BetaFlex Pro(1&2), with the XXL Arm only, no measuring head, to become a BetaFlex Pro XXL System.



The BetaFlex Pro sensor (measuring head) is mounted on the end of the Adapter arm allowing measurement in the center of flexo plates as large as 60 inches (1524 mm).

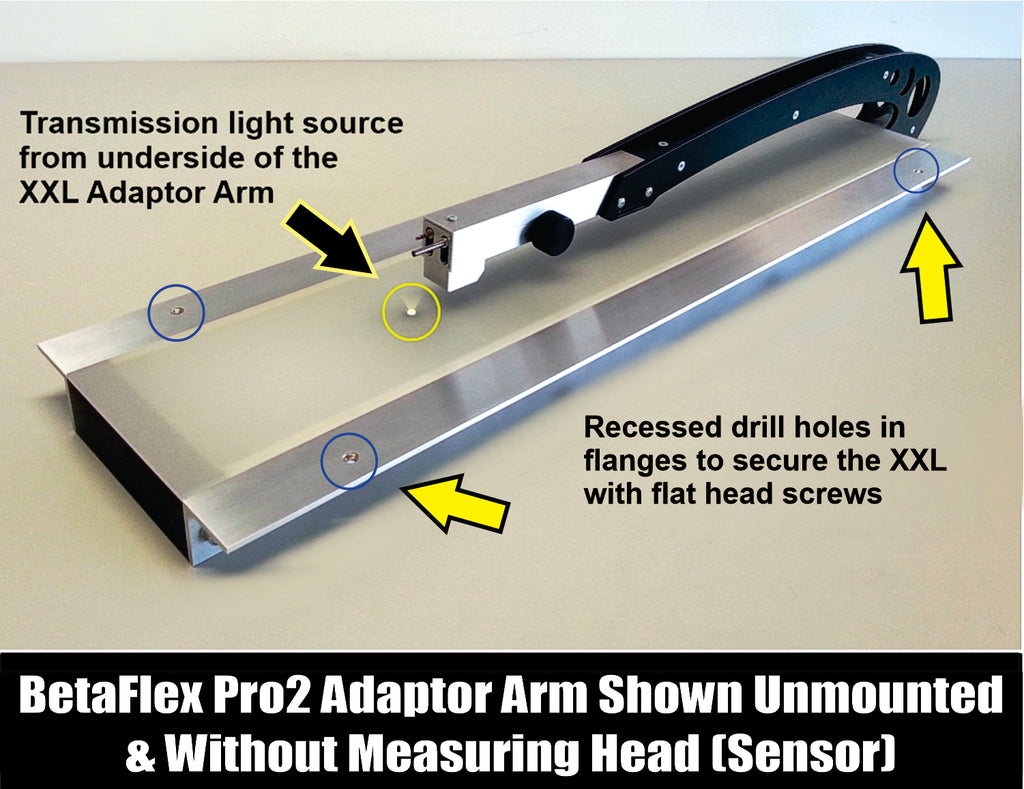

The BetaFlex Pro XXL Long Arm System or Adapter has an extended table with a built in transmission light source and a support arm to carry the measuring head / sensor for measurements 30 inches (750 mm) in from the edge of the plate, mask, or film.



The extended table is intended to be mounted within or between two work surfaces to give the operator a convenient flush working area.   As with the standard device, the XXL support arm can also carry the FlexiGage Micrometer to allow plate thickness and relief to be measured in the same work area as halftone properties. Also available as a complete BetaFlex Pro XXL Long Arm System which includes the measuring head (sensor).



The XXL can be purchased as a complete system including BetaFlex Pro2 measuring head / sensor or can be economically purchased with JUST THE EXTENSION ARM to fit your existing BetaFlex Pro sensor / measuring head if you already own a standard BetaFlex Pro(1&2).

cccc

This product is not available for sale online - Click here to contact us directly


All 10 day trials must be specified when the order is placed.



Betaflex Pro Testimonials

The Betaflex Pro helps my team produce better work through live images and measurement data.
Its easy to use/learn; after a few uses operators have it down.  As a manager this device has helped us 'cut through the bias' during plate & print troubleshooting and kept the focus on the problem/solution.  You cannot put a price on that; after a few print/plate troubleshooting sessions it paid for itself.
I have only contacted the Betaflex support team once or twice and they had an answer for me in less than 24hrs.
I would recommend the Beta Pro to anyone producing flexo or letterpress plates as well as film negatives.  It also works well as a print analyzer.
When it comes to plates seeing is believing and measurement is king; BetaFlex Pro does both. We are very satisfied with the product.

Steven Rice
Dart Container
------------------------------------------------------------------------------


As a QA tool it does help us “produce better work” by allowing our team to peer into our platemaking process to ensure that the final product is within the established ranges for each attribute that we measure.
The customized settings for plate specific tolerances have been quite helpful. The foot pedal for the    controls also means more of a hands free operation that some operators find helpful.
As plate technologies have evolved and process controls have become tighter, it has become very    important to have a dependable measurement tool that allows you to measure and understand what    is imaged on the mask and what is formed on the finished plate.
We have established a  good relationship with Beta. They have been willing to understand what we were trying to accomplish and have done a good job supporting our efforts via email, phone calls, and screen sharing support.
If someone was looking for a tool to help them better understand their platemaking process and is willing to invest the time to setup the proper procedures, then we would certainly recommend the BetaFlex Pro.

Tyler S. Mills
Special Projects Manager  |  Cyber Graphics
------------------------------------------------------------------------------


We have been using the BetaFlex Pro for approximately 3 years.
We find it very helpful to assess the quality of our printed product and to refer to it to analyze and determine if adjustments are necessary at press side, or in pre-press.
We also use it to review HD dots on our plates. There have been numerous occasions where the Betaflex PRO has saved us money at press side.
I enjoy using the BetaFlex Pro and have found it to be a very valuable tool.

Dina Russo
Yerecic Label
Pre-Press Manager
------------------------------------------------------------------------------


I have discovered a new solution for reading white ink mottle on PRINTED FOIL!
This stunned the printer in 15 minutes as they have been searching for a way to do this for a long time. Ironically while I was there they were conducting white ink trials on foil and using only using visual pass/fail methods.
I did this on my computer with my BetaFlex Pro in front of them. I could not have done any of this without the BetaFlex Pro.


David A Recchia | Application Development Sr.
Printing Process Specialist
Macdermid Printing
