Betaflex HR (High Resolution) Flexo Analyzer For Micro-Structure Analysis
by Beta Screen Corporation

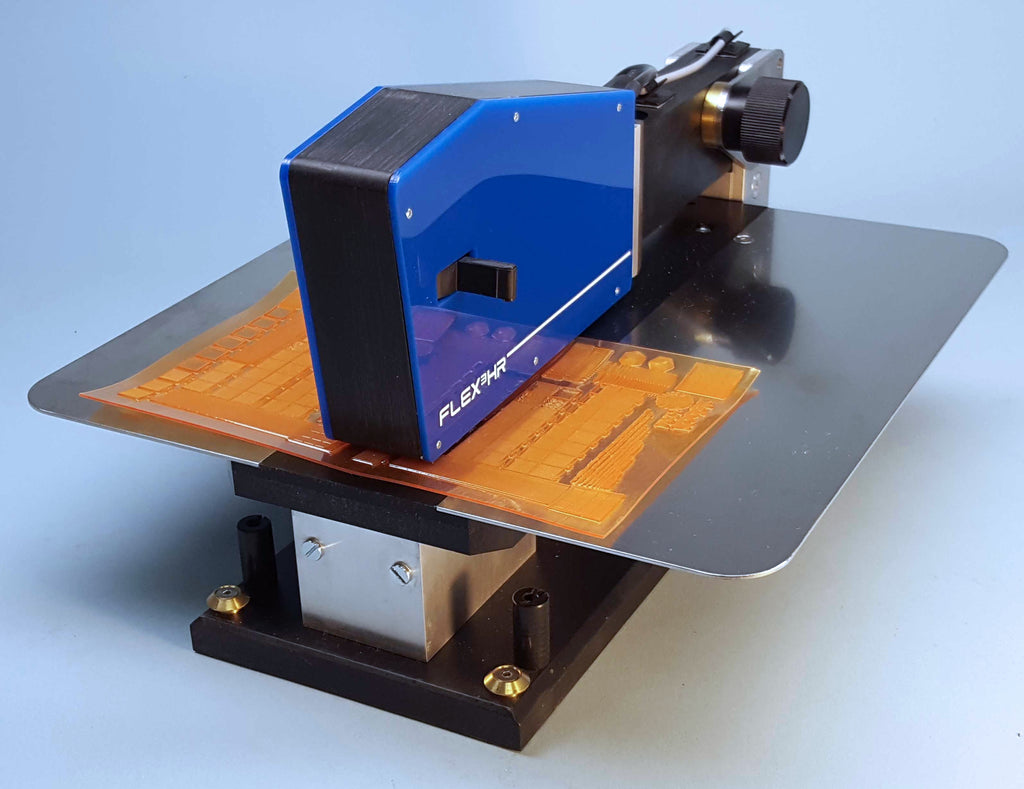

The BetaFlex HR (High Resolution) Flexo Analyzer provides easy and accurate analysis of flexo plate solid and dot surface Micro-structures.
Calibration Certification for ISO & Other Requirements
Micro-Structure patterns greatly improve ink transfer and dot fidelity, these patterns and textures are sensitive to variations in mask exposure and plate processing.
They benefit from the same process control techniques provided by the BetaFlex Pro but require much higher magnification and resolution as provided by the BetaFlex HR.
Operating at 43,000 pixels per inch compared to the 14,000 ppi of the BetaFlex Pro, halftones as coarse as 175 lpi and plate patterns as fine as 1500 lpi are automatically analyzed for dot area, diameter, edge factor and more.
Operating in transmission mode only, the Betaflex HR provides critical insight into the most sophisticated screening techniques available today and is the perfect complement to the BetaFlex Pro which offers 3D Imaging (HD Flexo), 2D transmission, reflection color dot % analysis, as well as many other features.
New statistical functions count and quantify the distribution of cell sizes above and below the user-specified target value.
Includes a FREE BetaColor Viewer 3, a $515 value. The BetaColor Viewer 3 is the industry standard for critical CMYK color evaluation and is recognized by all segments of the industry with more than 20,000 units sold. View colors enhanced with LED's in high contrast. Yellow and other colors appear virtually black
