BETA PRECISION DIGITAL ELECTRONIC RULERS, NON-CONTACT MEASUREMENT FOR LARGE AND SMALL DISTANCES

ZZZZ

BETA PRECISION DIGITAL ELECTRONIC RULERS allow precise, portable, non-contact measurements of large and small distances FOR ANY MEDIUM OR SURFACE WHERE PRECISE, REPEATABLE MEASUREMENT IS CRITICAL.

ZZZZ

Films, Plates, Dies, Prints, Circuit Boards and Electronics and more.

ZZZZ

- Graphics for print dimensions and register

- Flexographic printing platemaking for image geometry and feature size

- Web printing for print length distortion

- Die cutting for alignment and re-knifing

- Printed circuit board imaging, trace width, hole diameter

- Metal etch and decoration verification



SIZES

Range (Inch/MM)	Tolerance (Inch)	(MM)
16 inch / 406 mm	+/-0.002	+/-0.05
24 inch / 610 mm	+/-0.003	+/-0.08
30 inch / 762 mm	+/-0.004	+/-0.10
40 inch / 1016 mm	+/-0.005	+/-0.12
60 inch / 1524 mm	+/-0.006	+/-0.14
80 inch / 2032 mm	+/-0.008	+/-0.20

ZZZZ

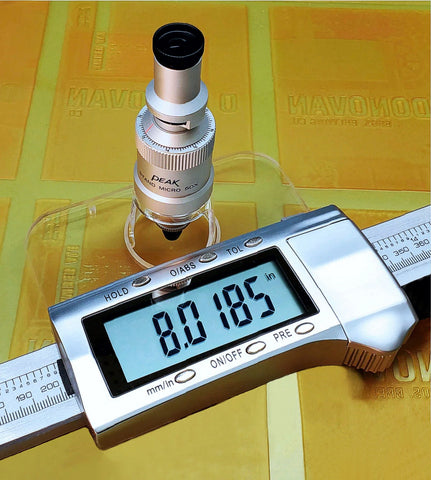

A PEAK 50x microscope world renowned as the hallmark in quality optics, an optional 25x is available, attached to a digital display traverses the area to be measured on a rugged steel beam.  The operator can select inch or metric measurements with a resolution of 0.0005” or 0.01mm, respectively.

 zzzz

zzzz

Beta Precision Digital Electronic Ruler Order Page

 zzzz

For distances over 0.060” / 0.1524 cm, the operator places the microscope cross hair over the start of the sample and zeros the digital display for non-contact measurement.  The slide assembly is then moved to the opposite end of the sample  to place the cross hairs over the end of the sample.



Download Brochure (2-pages)

Extended Brochure (6-pages)



Beta Reglas Electronicas (Espanol)



Display Diagram

Specifications & Dimensions

Beta Precision Digital Electronic Ruler Question & Answer

Instruction Manual



The high contrast digital LCD micrometer display, self-contained and battery powered with resettable zero to measure in either absolute or relative modes with inch/metric conversion shows the exact distance moved to measure substrate distortion or stretch.



zzzz

Line widths, bar code elements, image register error, and any feature that fits within the field of view of the microscope can be measured directly on the microscope eyepiece scale.  Inch or metric reticles can be specified when the unit is ordered.





Beta Precision Digital Electronic Ruler Order Page

 zzzz

Download Brochure

Display Diagram

Specifications & Dimensions

Beta Precision Digital Electronic Ruler Question & Answer







Rubber feet rest solidly on the work surface and support the microscope and slide above the sample while the ruler’s stainless steel construction makes it appropriate for laboratory or production environments.

When very large samples need to be measured, the non-skid mounting feet can be placed directly on the film or plate without damage.





The accuracy of the ruler is dependent upon the range of the device as shown below;

Range (Inch/MM)	Tolerance (Inch)	(MM)
16 inch / 406 mm	+/-0.002	+/-0.05
24 inch / 610 mm	+/-0.003	+/-0.08
30 inch / 762 mm	+/-0.004	+/-0.10
40 inch / 1016 mm	+/-0.005	+/-0.12
60 inch / 1524 mm	+/-0.006	+/-0.14
80 inch / 2032 mm	+/-0.008	+/-0.20





Please note that all Beta Precision Digital Electronic Rulers are custom made specifically for your order. If possible, we strongly encourage you to take advantage of our 10-Day Free Trial program prior to purchase.





A 25% restocking fee will be applied for any Beta Precision Digital Electronic Ruler purchased and returned to us for a refund or credit.
