Betaflex Micrometer Table: Affordable, Easy-to-Fit & Retro-Fit. Measure Flexo Plates as Large as 60" / 1524 mm

by Beta Screen Corporation
Price $ 4,800.00

The New Betaflex Micrometer Table



Measure & Document Plate Depth & Relief



The Economical, Easy-Fit, Retro-Fit Micrometer Table With High Resolution Micrometer & Optional FlexiGage Database Software


flexographic plate micrometer measuring table


Measure Plates as Large as 60” / 152.4 cm



Save Time, Money & Space


NO NEED TO PURCHASE OR BUILD A LARGE DEDICATED MICROMETER TABLE AND ROOM


The Betaflex Micrometer Table is mounted into a cutout in the work table surface or between the edges of two tables and can be assembled in minutes.



Made from solid steel and weighing less than 50 lbs. / 22.68 kg, the Betaflex Micrometer is easy to install and requires no special skills or surface preparation.


Brochure Betaflex Micrometer Table With FlexiGage Software

Betaflex Micrómetro Mesa Brochure (Span)

zzzz




Easy Installation in Minutes!


The curved portion of the support arm extends 5 ½ inches / 13.97 cm past the rear edge of the base.  Please note this space requirement before setting the unit into final position.

The 8 inches / 20.32 cm, width shown here includes clearance for the heads of fasteners not visible in this illustration.






Betaflex Micrometer Table mounted between two tables without micrometer mounted between two free-standing tables. An alternative mounting arrangement can be made by cutting a recess into an existing table or building up the work surface on either side.

Screw slots are drilled into the flanges to more securely mount to countersink the device.

zzzz



Two Micrometer Options:


FlexiGage Micrometer 1: Resolution: 0.00005” - 0.001 mm

FlexiGage Micrometer 2: Resolution: 0.0005” - 0.01 mm

Measuring Force: 065N - 0.90N



Optional FlexiGage Database Software

Measure and Document Your Plate Measurements


Once a database is created, reports are then stored to the database. The operator can create a database per month, per customer, or with any criteria required.

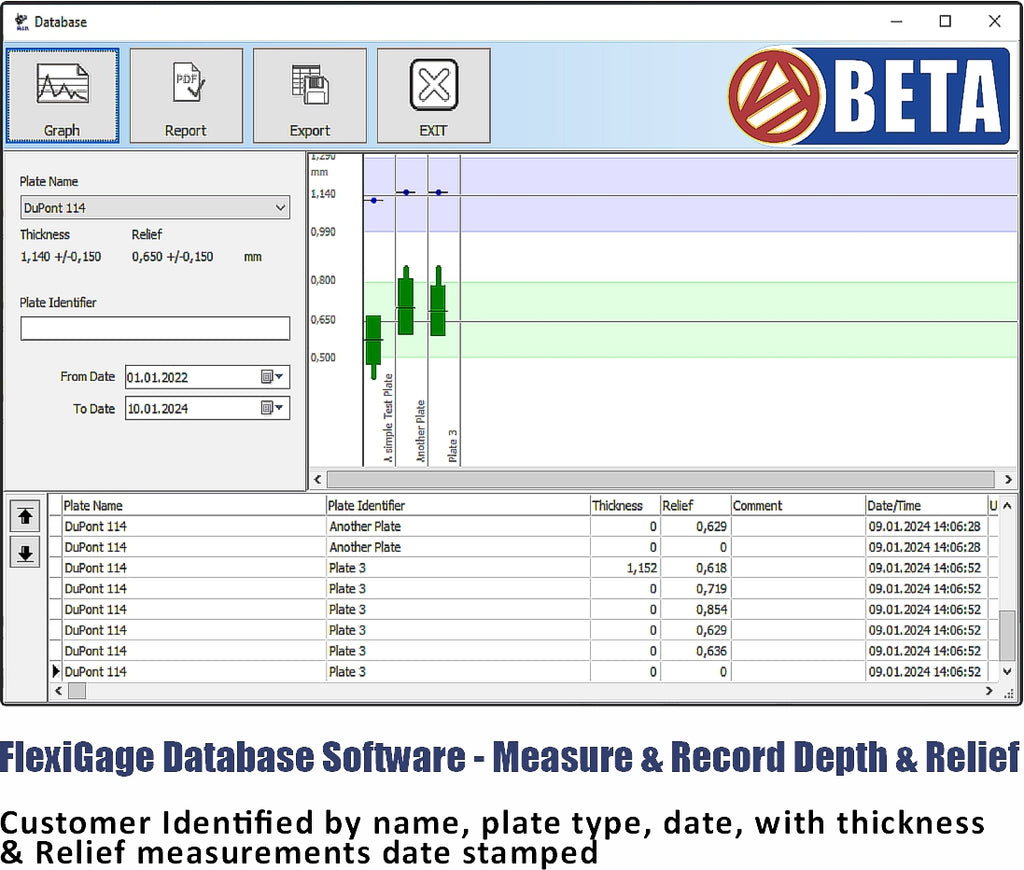

The Database key on the main screen gives access to the database window.

The database can now be filtered by “Plate Name” and by “Plate Identifier”

(or unfiltered). Clicking the Graph will draw the box plot, whereby the blue boxes represent the thickness measurements, the subsequent green boxes are for relief measurements.


WEIGHTS AND DIMENSIONS


Shipping Dimensions: 48”x12”x10”/124 cm x 33 cm x 20 cm


Shipping Weight: 46 lbs./20 kg, Actual: 40 lbs./18.14 kg
