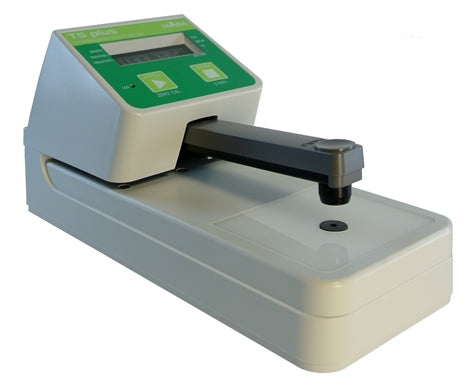

Ihara T5 Plus+ Transmission Densitometer

The Ihara T5 Plus+ is a black and white transmission densitometer with a built in mini light table that allows for accurate positioning.

This is a replacement for the X-Rite 361T / 341T.

Measure Density, Positive Dot Area %, Negative Dot Area %, and Transmittance.

• Measures Film
• Density Measuring Range: 0.00D - 6.00D
• Aperture Size: 3mm, 2mm, and 1mm (interchangeable)
• Measure up to the center part of A3 + size film
• Rechargeable battery or direct AC
• Measuring Arm Length - 7.3"
• Light Table 3.1" x 2.8"
• Transfer data to a PC using the RS - 232C output terminal (Interface Cable Optional)
• Serial Communication Software, Windows OS Only (Optional)
• Light Source: LED

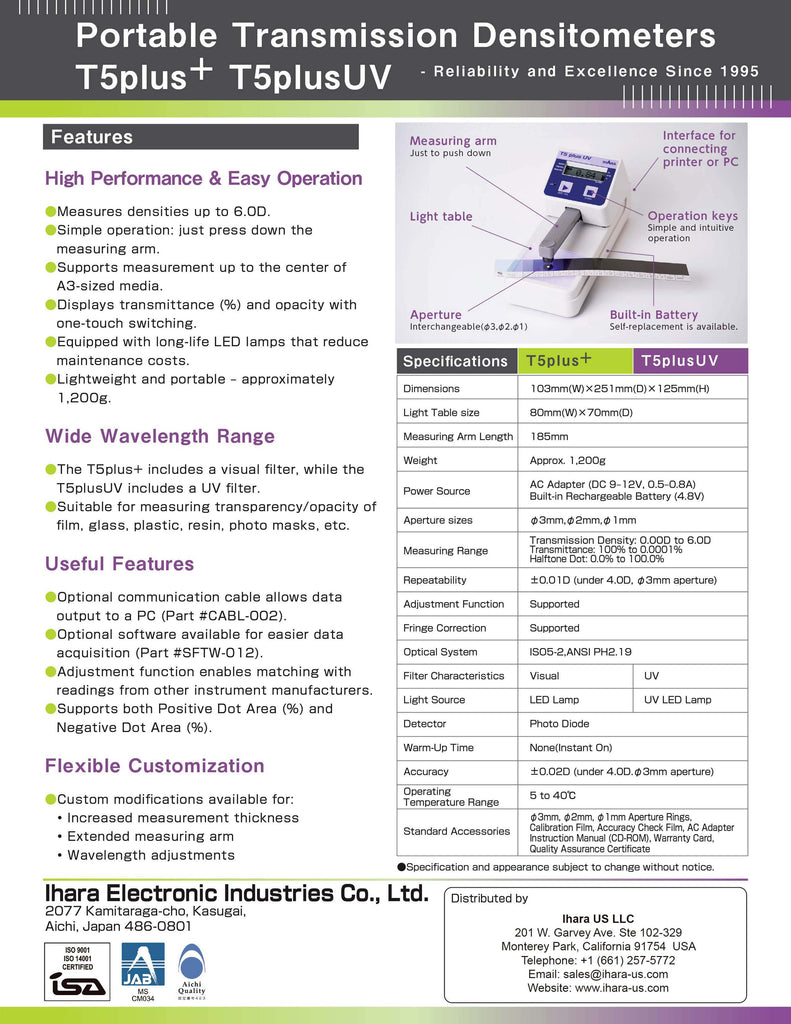

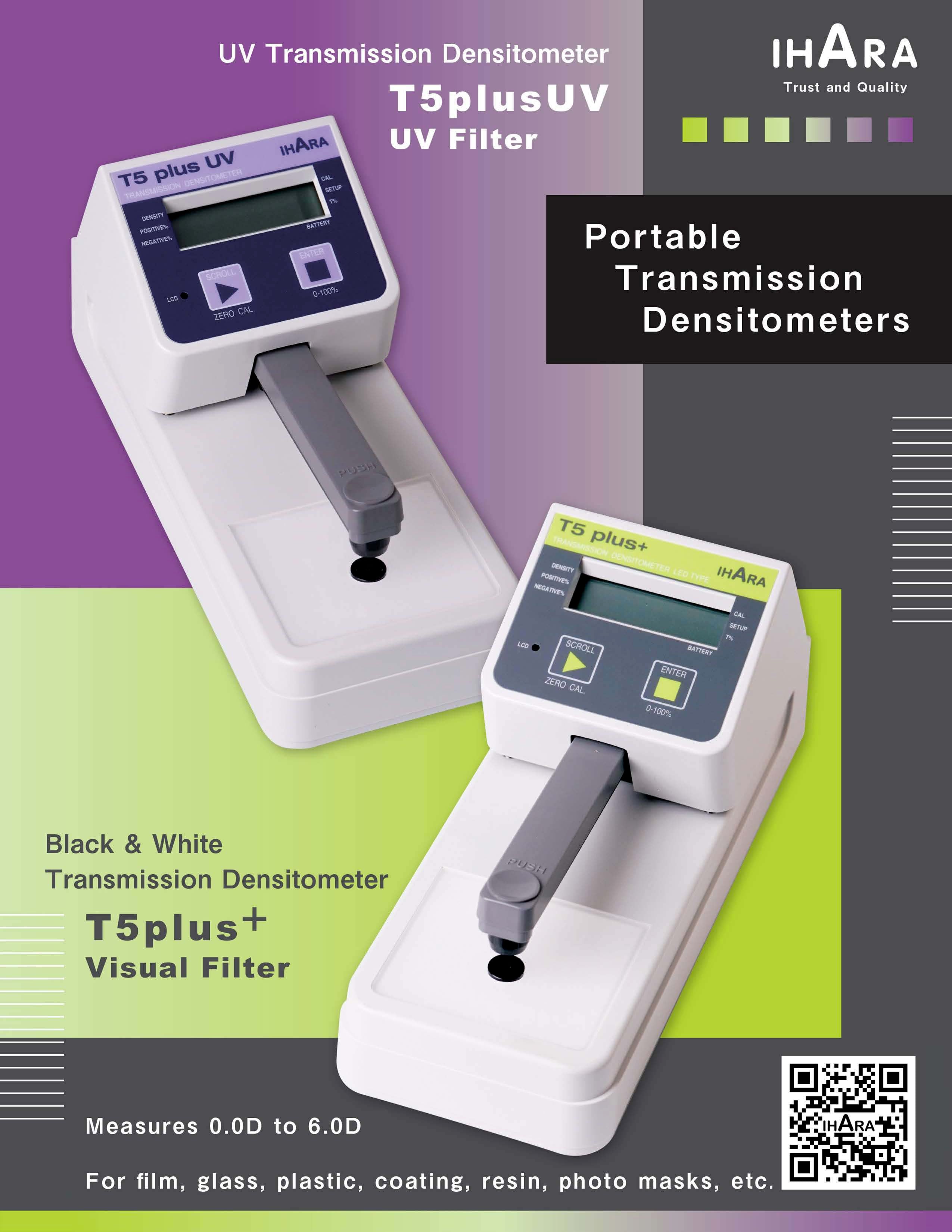

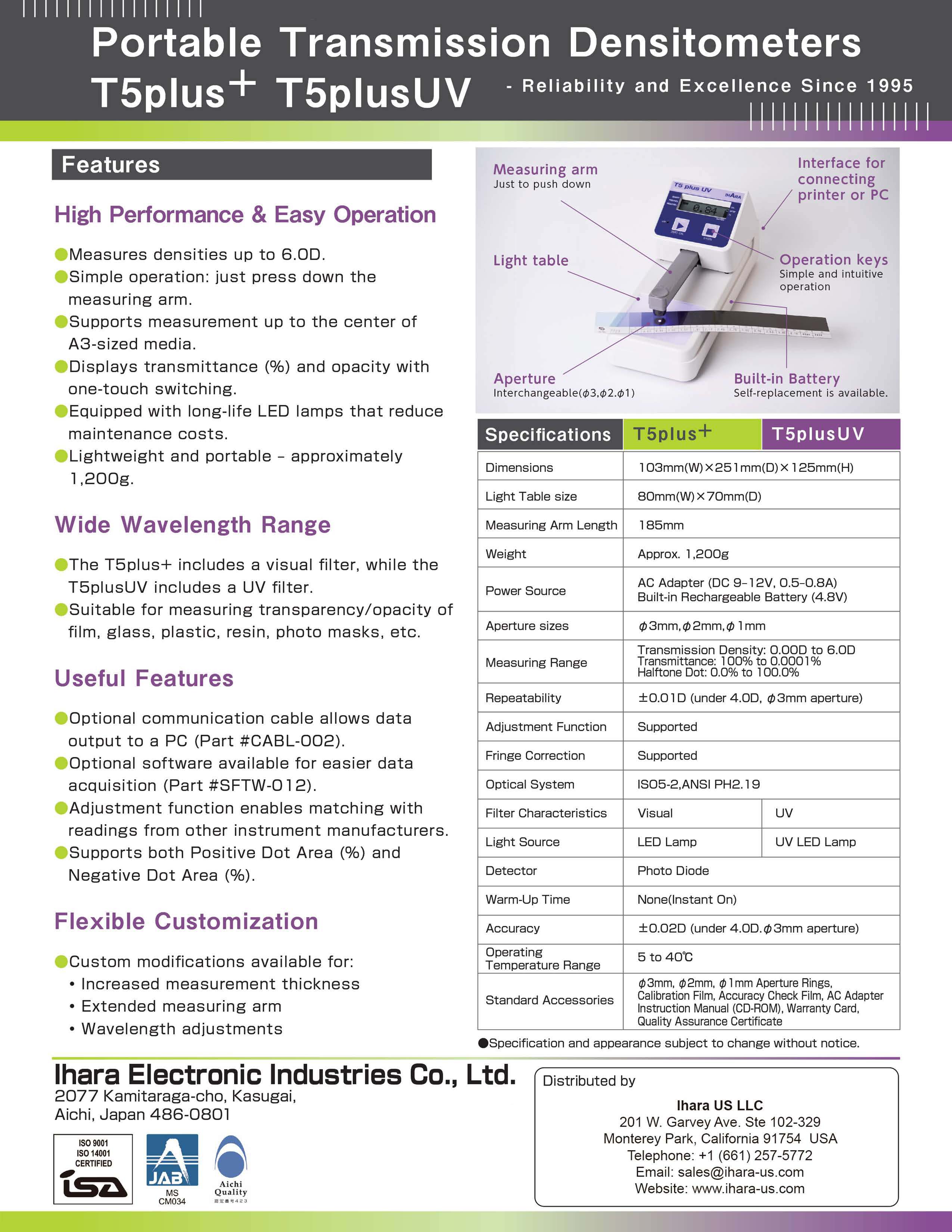

T5 Plus+ Brochure
