Digital Thickness Gauge

by Beta Screen Corporation
This product is not available

Multi Purpose Hand Held Micrometer

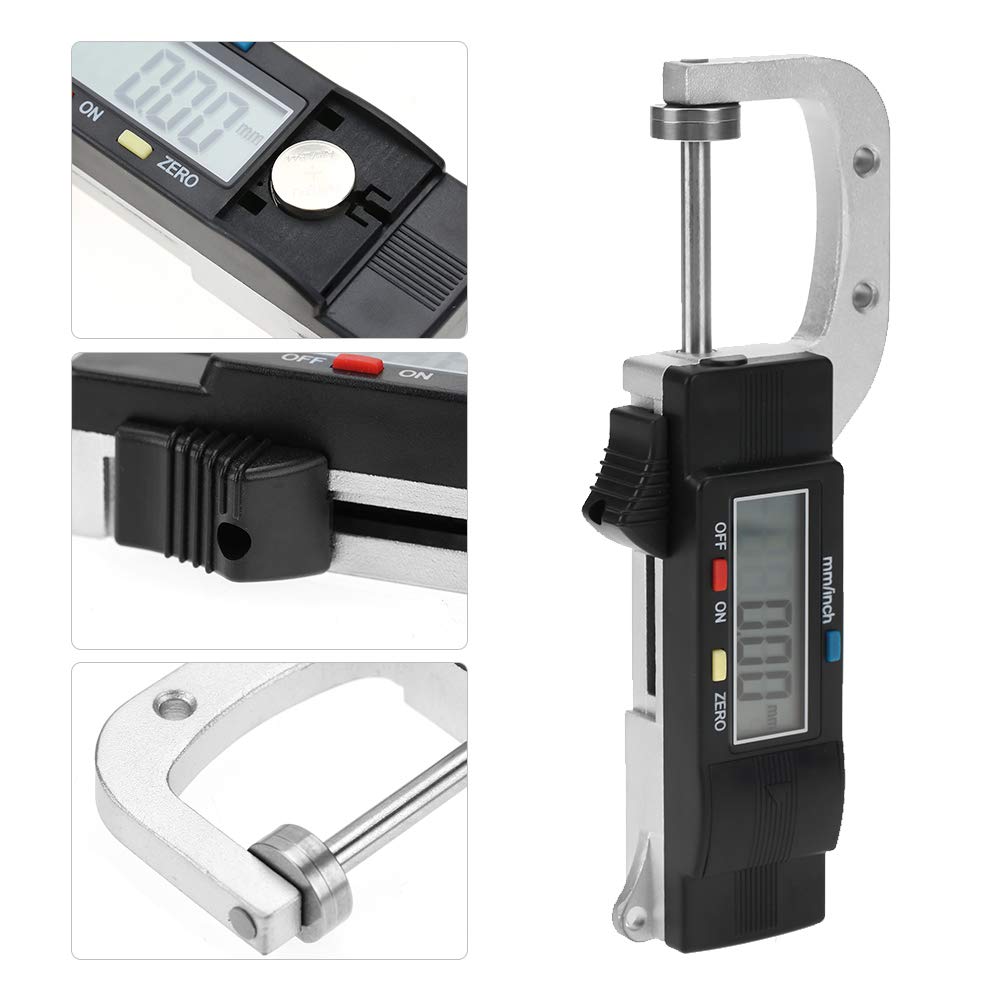

Digital Thickness Gauge allows precise and repeatable thickness measurements of paper, Flexo or Metal Printing Plates, Printing Blankets, and packing.

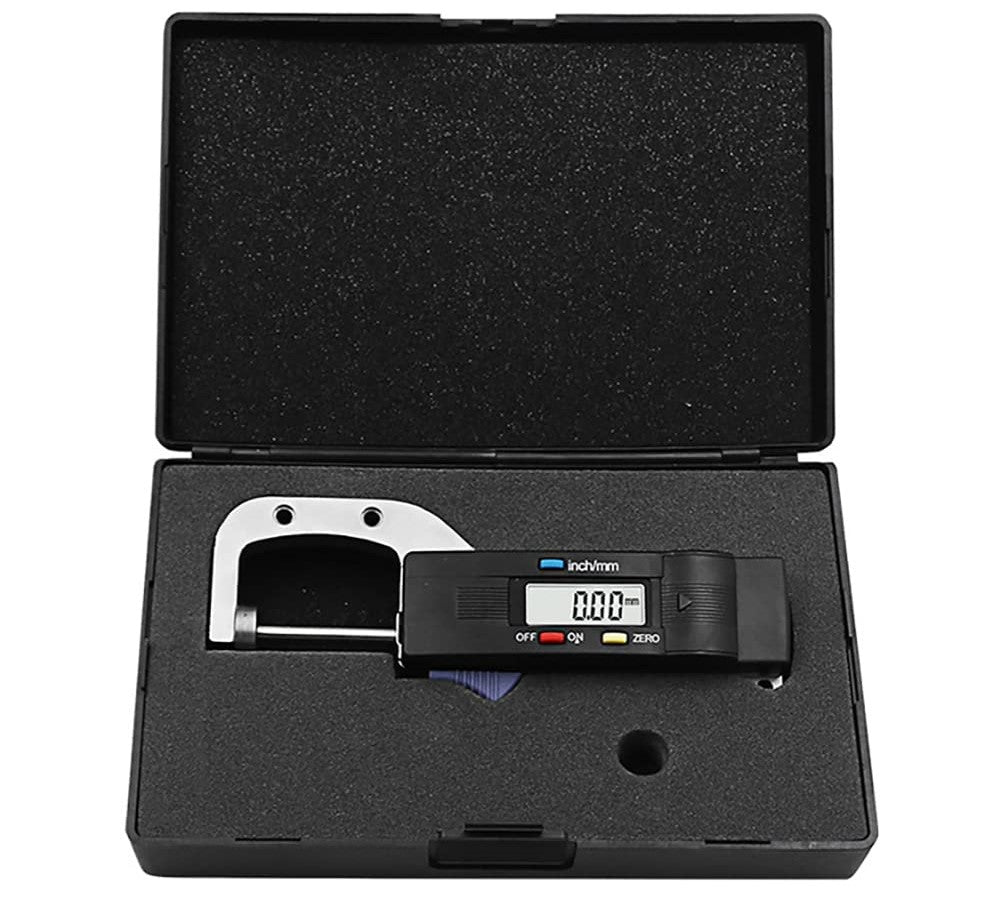

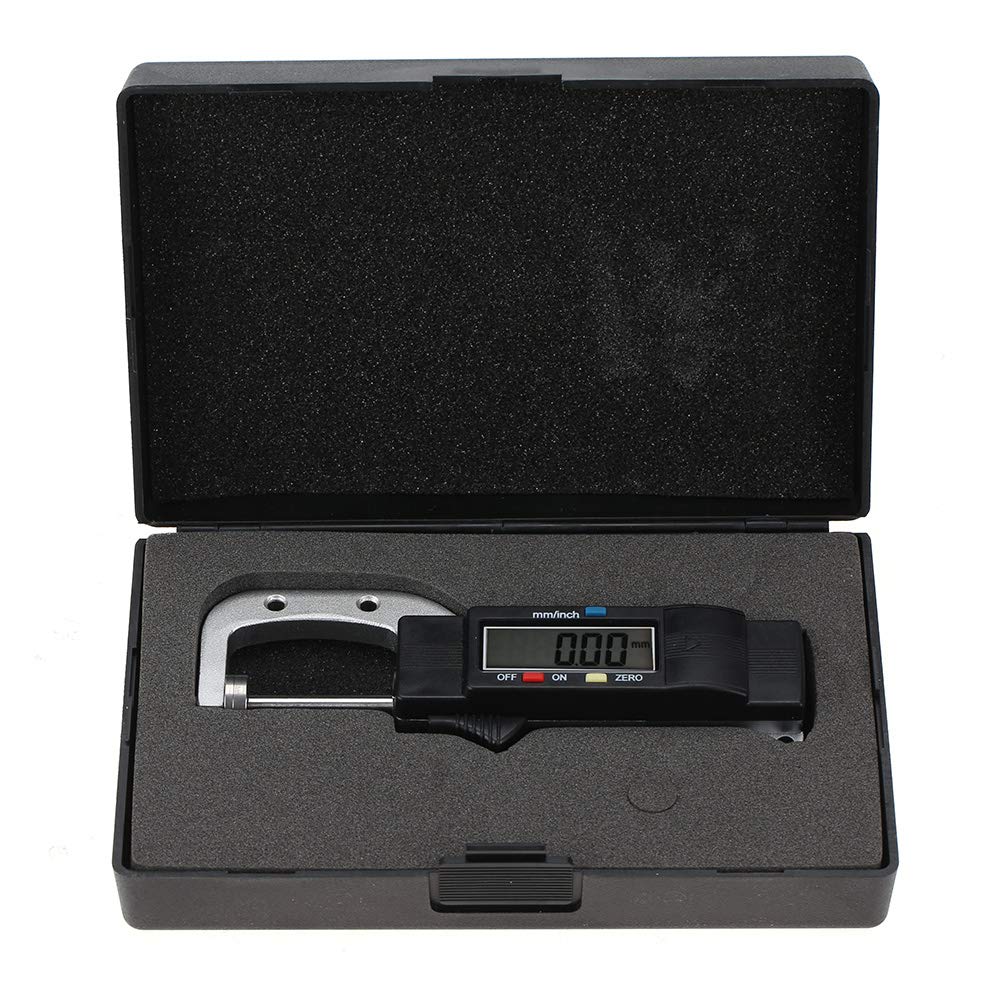

The spring-loaded action assures every operator of an accurate reading.   It is accurate enough for laboratory use and rugged enough for the shop floor.   It is shipped with a fitted hard case for travel or storage. Wear it on a belt hook or lanyard for the ultimate in convenience.

  FEATURES:

  • Inch and Metric Scale

  • High Precision Electronic Readout

  • Spring-Loaded Snap Gauge Action Eliminates Operator Error and Inconsistency

Specifications

  • Resolution .0005 / .01mm
  • Measuring Range 1.0 / 25mm
  • Accuracy +/- .001 / .03mm
  • Throat Depth 1.0" / 25 mm
  • Anvil Diameter .57 / 14.5 mm
  • Battery (included) SR44 Silver Oxide
  • Overall Dimensions: 7.87 x 3.94 x 3.94 inches
  • Weight: 10.58 oz



About Beta's 10-Day Free Trial for this product, Click Here.
